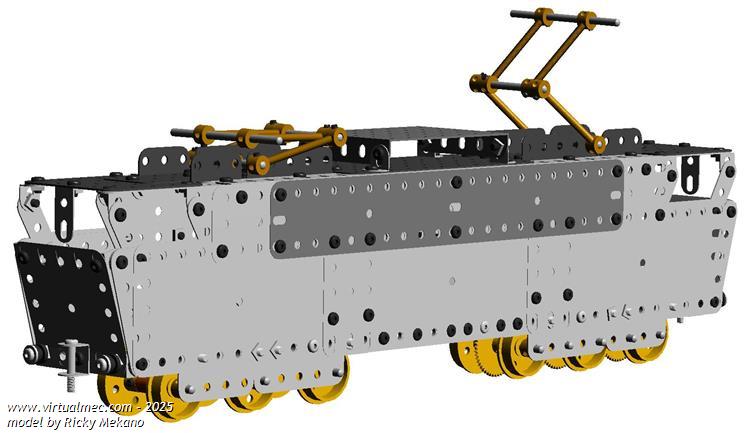

"Loco CC21000" by Rick Demil - 04/05/2018
166.036 bytes - 614 parts
Description
This model is based on real CC21000 plan. Scale is 1:43. Bogie drive gears are all meshed to improve motorization.
Maybe structure could be better to fit loco's look. I'm not expert with flexible plate usage.
I used M4 screwed rods for my model's pentographs.
Model weighs more than 4lbs.
Download modelDownload model (.mdl)


1 Rick Demil, the author of the model, on 04/05/2018 09:32:47 said

You can see this model running here => https://vimeo.com/267851571
