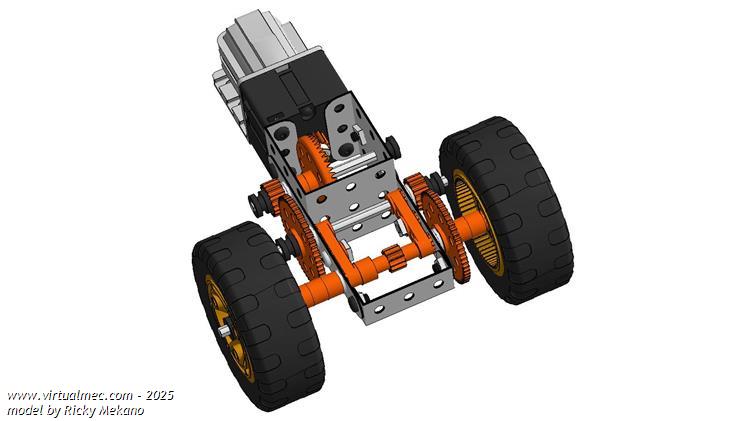

"Universal driver block 1:29" by Ricky Mekano - 15/09/2017
56.448 bytes - 76 parts
This undercarriage is usefull for any vehicle to move properly.
Just build it and add your model around.
This model use motor 6V, reductor 760 (1:19) and gears units (1:10).
Download modelDownload model (.mdl)

1 ace65 on 18/09/2017 13:35:02 said

Looks to me to be a 1:19 reduction gearbox followed by 12T to 50T reduction (1:4.16), followed by TWO 19T to 57T reduction(1:3) (1:3)

Doesn't that make a reduction of 19 x 4.16 x 3 x 3 = 1:711.36 ?
