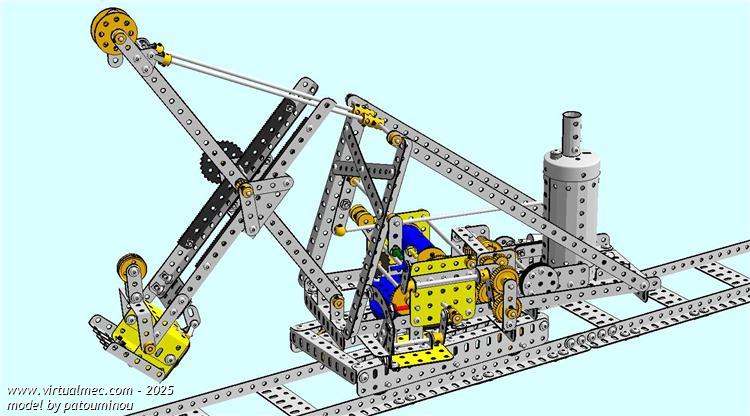

"Steam Excavator (Super Model 19a)" by patouminou - 04/01/2022
236.559 bytes - 797 parts
Description
This huge steam powered machine has diged the Panama Canal !
https://www.youtube.com/watch?v=VdGNOhtbgCw
and here the Meccano leaflet :
http://meccrl.free.fr/sml/index.htm
and the model :
https://www.youtube.com/watch?v=8B8XqglNLUI&t=12s

to play with : Menu : View : Toolbars and Docking Windows : Motion then adjust the general speed and the « CYLINDRE_VAPEUR » speed.
Then in the rightmost combo box, choose :
LEVIER_PIVOTEMENT the blue lever makes the excavator spin
LEVIER_SELECTION the red lever has four positions : translation on the track, tilt arm, neutral and slide arm.
LEVIER_FREIN yellow and LEVIER_VAPEUR green can be moved but have no effect.
Enjoy !
