"Erector SE Crane release 2018" by Rick Demil - 03/02/2018
158.433 bytes - 638 parts
Description

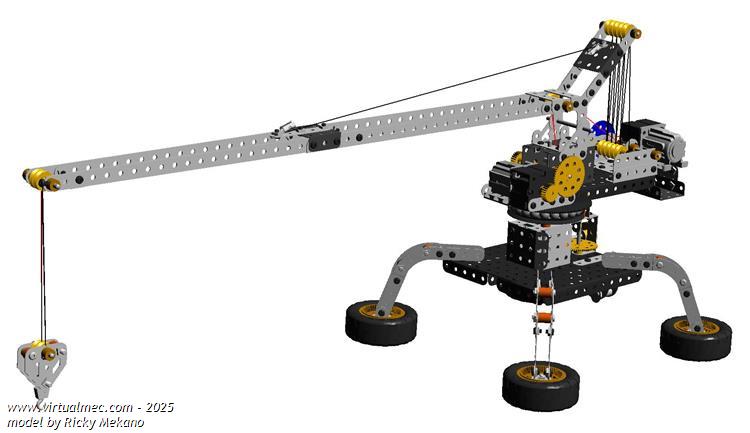

Here is the new version (maybe the last) of luffing crane from ERECTOR. I used my new set to improve this model. More metal gears and more parts to make model stronger. Jib is longer and base is larger. All model is stable and balanced.
3 motors drive this model: luffing, winching and gyration. I found the right combination to drive plateform recolving: stepper motor with worm meshed with 57-teeth gear. This gear system drives 19-teeth pinion meshed with 133-teeth gear.
Download modelDownload model (.mdl)


1 Rick Demil, the author of the model, on 03/02/2018 15:39:34 said

You can see this model on this video: https://vimeo.com/254010435
Enjoy!
