"clockwork motor toy" by PGM - 08/12/2022
38.307 bytes - 29 parts

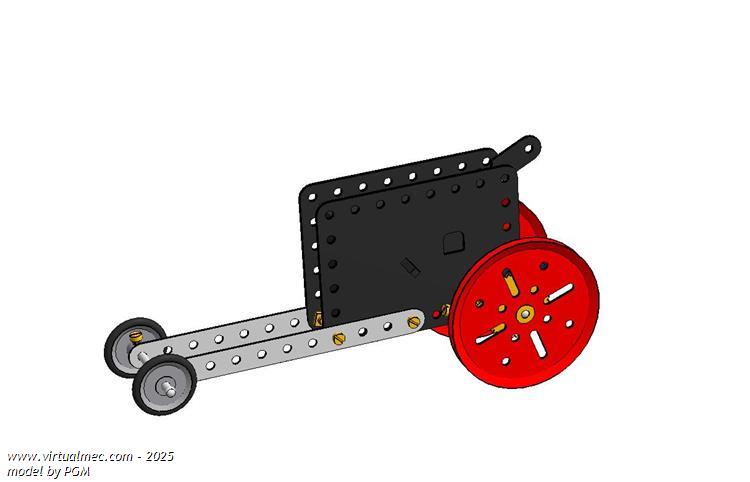

A very simple model powered by a Meccano clockwork motor that my father bilt for me when I was a boy in the seventies
Download modelDownload model (.mdl)

1 patouminou on 17/12/2022 15:37:40 said

This is a minimalist model, so it is a good model to animate. There are three units : MOTOR, FRONT_WHEELS and an automatic engagement between these units, the third unit REAR_WHEELS must have an engagement whith the unit FRONT_WHEELS.
Then, if you want the model rolls, you need an unit MODEL with an engagement with the unit FRONT_WHEELS!
Try it!
2 PGM, the author of the model, on 18/12/2022 20:23:54 said

@patouminou - #1 - -------------------------------------
thank you for the tips.
I haven't ever animated my models in Virtualmec because I don't know enough this function of the software.
I will try in the future, beginning from this model
