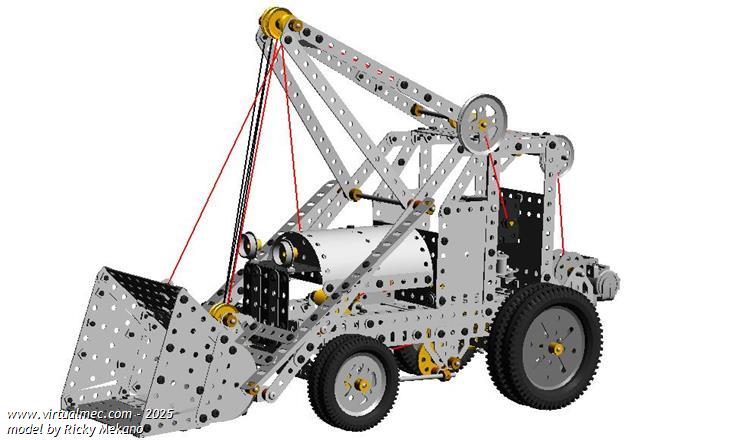

"SML 10.04 Lifting Shovel" by Rick Demil - 28/07/2018
214.365 bytes - 895 parts
Description
My first construction site vehicle in perfect status. I improve shovel commands with 2 motors: arm lifting and Shovel toggle. Steering is driven by stepper motor. Finally, Main drive is propelled by 6V motor worm gear.
Use Motion MAIN DRIVE and look. Enjoy!
Download modelDownload model (.mdl)


1 Rick Demil, the author of the model, on 28/07/2018 19:28:13 said

Please have a look for this video: https://vimeo.com/281609173
