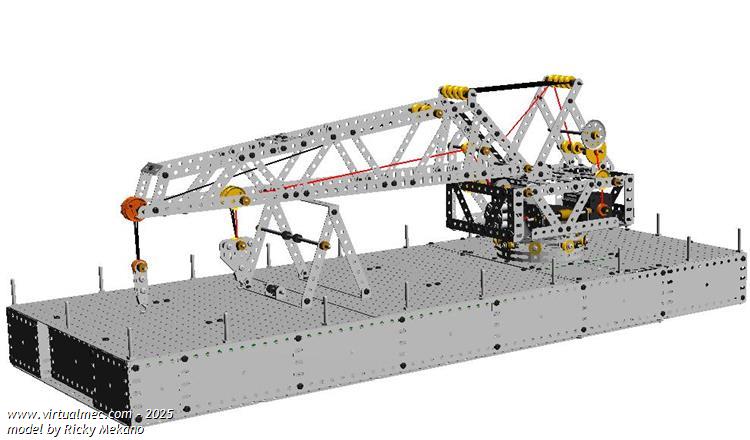

"Revolving Boat Crane" by Ricky Mekano - 03/04/2018
340.686 bytes - 1.068 parts
Original model based on a real HERCULES crane.
Gyration gear uses 8-wheel bearing with two circular girders. 133-teeth wheel is bolted with cabin axe bolted with platform. A heavy counterweight is settled on cabin's backward. This crane can lift a 5 once load and more. The hook on top jib is fake (no place enough for another motor).
Use Motion menu to operate. Enjoy!
Download modelDownload model (.mdl)

1 Ricky Mekano, the author of the model, on 03/04/2018 11:46:00 said

You can see this model "floating" her: https://vimeo.com/262742187
