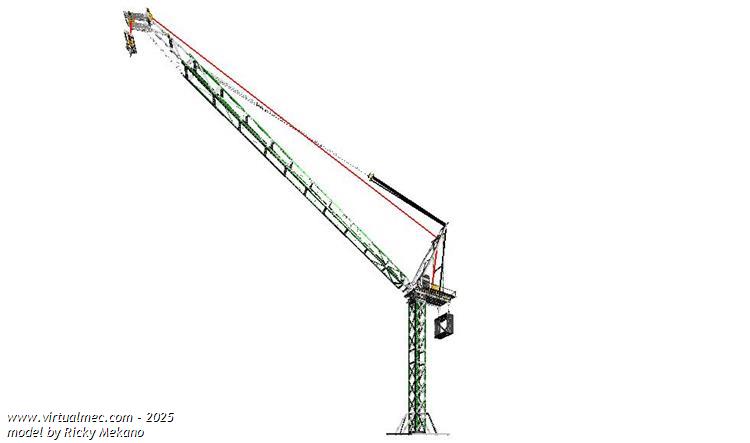

"Luffing Tower Crane" by Rick Demil - 31/10/2018
445.130 bytes - 1.949 parts
Description
This crane is based on Philip Webb's Luffing Crane (http://www.nzmeccano.com/image-120176).
It's my biggest model I ever built since my MECCANO begins. Almost all my personal set has been used.
This VM model takes too much memory to install units and engagements. Static model.
Download modelDownload model (.mdl)


1 Rick Demil, the author of the model, on 31/10/2018 11:17:57 said

You can see the video show here: https://youtu.be/cHM77HJxLQ4
