"accelerating and decelerating mechanism" by Meccano kinematics - 06/03/2012
35.165 bytes
Description

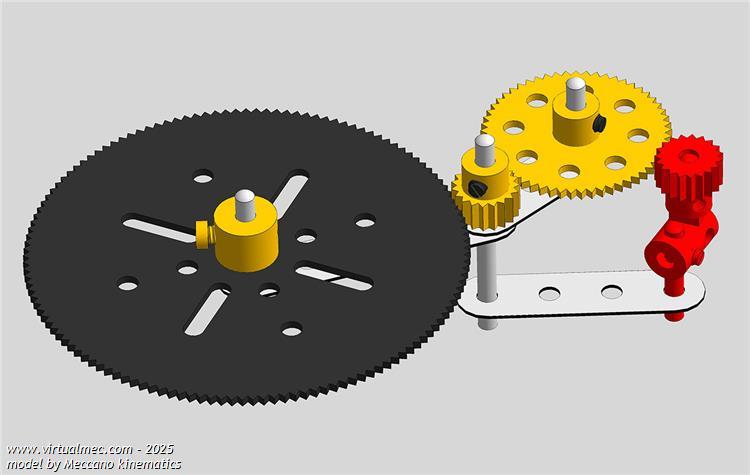

The red coloured 19t pinion has been excentrically mounted on a motor shaft, in a way, that the pitch circle of the gear is exactly in the centre of the motorshaft.

the 57t gear and the following 19t gear work as an idler.

The gear on the motorshaft rotates with a uniform speed whilst the 95t gear uniformly accelerates and decelerates! This mechanism will be part of a drawing machine.

All of the work of Meccano kinematics can be found at http://meccanokinematics.net and a video of the above mentioned mechanism can be viewed on Youtube under Meccano kinematics.
Download modelDownload model (.mdl)
