"New Music Box" by patouminou - 12/10/2025
461.980 bytes - 2.260 parts
Description

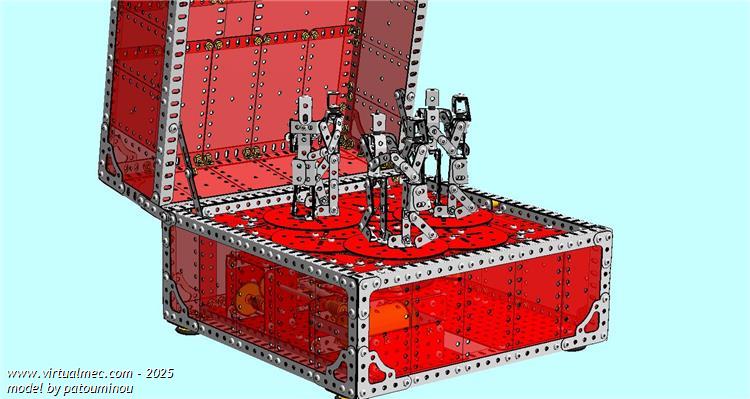

Six years and a half ago (!) I have built this music box with two couples of dancers :
http://www.virtualmec.com/content/model_details.aspx?mid=eab51e6e-9930-4e6b-a194-13dbe131b8be&pi=10&u=patouminou&ps=6
and this one with three couples :
http://www.virtualmec.com/content/model_details.aspx?mid=beb093d4-6834-4080-b440-5f289432b043&pi=10&u=patouminou&ps=6
using the mechanism of these cute ice skaters :
https://www.youtube.com/watch?v=lJkIRxh993w
I didn't notice that I have made a closed box which cannot be built !
So I have rebuilt a new music box, with a drawer which can be slide to make the mechanism, after removed some screws.
To make the dancers dance :
Menu : : View :: Toolbars and Docking Windows :: Motion, then adjust General and MOTEUR cursors.
To open the drawer, use the rightmost combo box in the menu bar, select the unit TIROIR and use the + and – numkeys.
The music drum cannot be made with Meccano parts. I have made a false one...
Enjoy !
|
 Download model (.mdl)
|
