"steam powered generator" by PGM - 15/06/2021
83.603 bytes - 280 parts

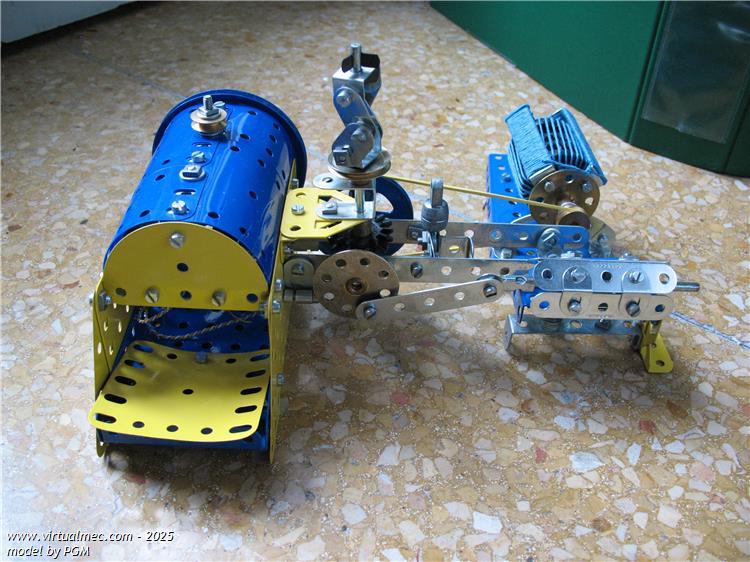

Model of a steam engine driving a current generator.
I have bilt it using only pieces from a n°5 set of blue/yellow/zinc period.
The cylinder is formed by 5 holes strips bolted to obtuse angle brackets, because I prefer do not bend my Meccano pieces.
The windings of the generator are done wrapping the Meccano hanc of cord in the four n° 22 pulleys on the axle of the generator.
Download modelDownload model (.mdl)
