"Optical Illusion Machine drawn by Edmundo Veiga" by ace65 - 13/01/2011
109.548 bytes - 520 parts
Description

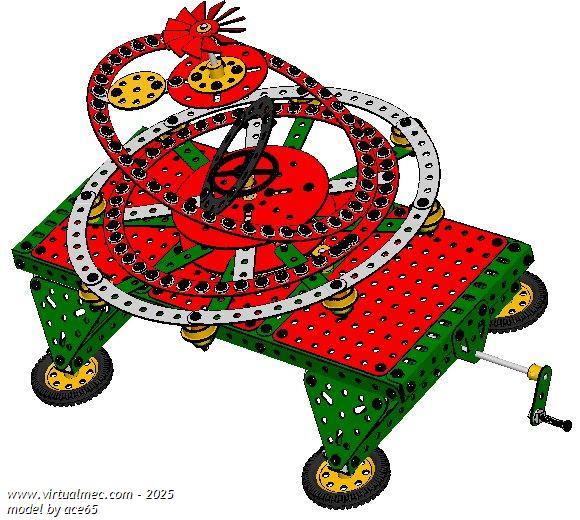

From an original design by Bert Halliday, Andreas Konkoly created this Optical Illusion Machine, Supermodel No. 82.
This model was shown in the Runnymede Meccano Guild Magazine No. 74 with instructions and illustrations prepared by Gary Higgins.
From these instructions Edmundo Veiga created the model in VirtualMec. I (Bob Thompson) added the blocks, units & motion. Finally Giorgio Vecchi added the finishing touches for you all to enjoy.
When spinning, the upper parts seem to be floating, unattached, in the air.
Additional files
| File details | Upload date | |
Optical Illusion Machine [
.pdf
-
1.391.273
bytes ]
I am experimenting improving the output quality of VirtualMec drawings. This PDF file has been created using a program called BULLZIP PDF PRINTER.
|
