"Improved Bend Jig for DAS apud MM" by EDV - 16/01/2011
35.586 bytes - 144 parts

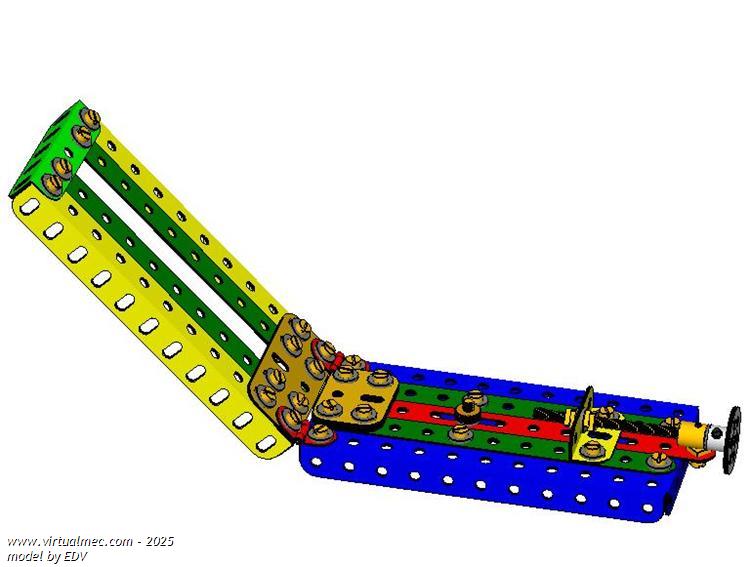

A strip is inserted in the channel with both part #52 resting on a table. It is preciselly positioned by turning the screwed rod. When 1 part #52 is raised to 90º to the other a bent strip end is obtained.
Download modelDownload model (.mdl)
