"Micro Wall-E" by agual - 09/10/2013
35.211 bytes - 118 parts
Description

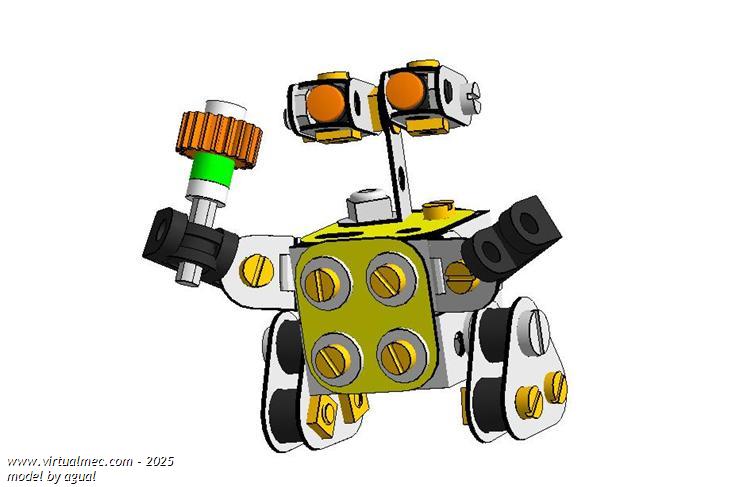

Micro Wall-E Designed and modelled in VM2.1 by Antoni Gual of Club Meccano de Catalunya.

The model has articulated arms, head and tracks thanks to Nyloc nuts.
Differnces with the real Meccano model:
-The triangular tracks should have a chain that can't be represented in VM
-Part C329 (1" narrow strip with three holes) is'nt yet in VM, it forms the top and bottom of the eyes. Four of the 806 in the parts list should be C329.
-The 2 parts 260d should be colored pins part 184.
Download modelDownload model (.mdl)
