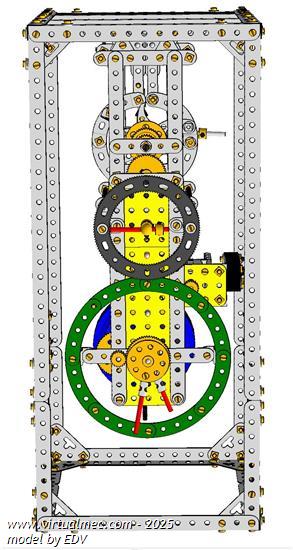

"Michael Adler's MP146 New Arnfield Mantel Clock" by EDV - 25/09/2024
208.076 bytes - 1.019 parts
Description
This version has much less parts than the original (MP104). Its escapement is very ingenious and unusual.
I have not built the real thing but, from the indispensable instructions to build it (available for purchase from https://www.hsomerville.com/mwmailorder/HowToOrder.htm) it sounds quite tricky to adjust and run. The faces of dials here have been improvised since they are not Meccano standard parts. The use, as reference, of this drawing in order to build the real thing will be very useful. Its part's list is quite accurate, and it carries a very reasonable interpretation of the diagrams and text of written instructions.
|
 Download model (.mdl)
|
