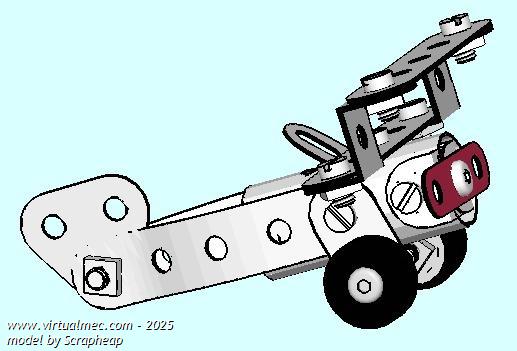

"Modified biplane" by Scrapheap - 09/08/2011
17.695 bytes - 45 parts
Description
Modified version of Meccano Micro Kit Bi-plane 1701C using part 23a for the karting wheel (part 38b - mini spacer and part 142l - 5/8" kart tyre) undercarriage and part 10 for the tyre nose cone (part 38b - mini spacer, part 59a-2 - rubber end cap and part 142n - 2/3" kart tyre).

Additional files
File detailsUpload date
.txt file  Parts list [ .txt - 103 bytes ]
List of parts for modified version of Meccano Micro Kit Bi-plane 1701C with the following amendments:-
1)Using part 23a - 1/2" loose pulley for the karting wheel (part 38b - mini spacer and part 142l - 5/8" kart tyre) undercarriage.
3)Using part 10 for the tyre nose cone (part 38b - mini spacer, part 59a-2 - rubber end cap and part 142n - 2/3" kart tyre).
06/04/2021 16:39:10 Download
Download modelDownload model (.mdl)
