" 4 Interlaced triangles" by EDV - 01/06/2013
31.086 bytes - 96 parts

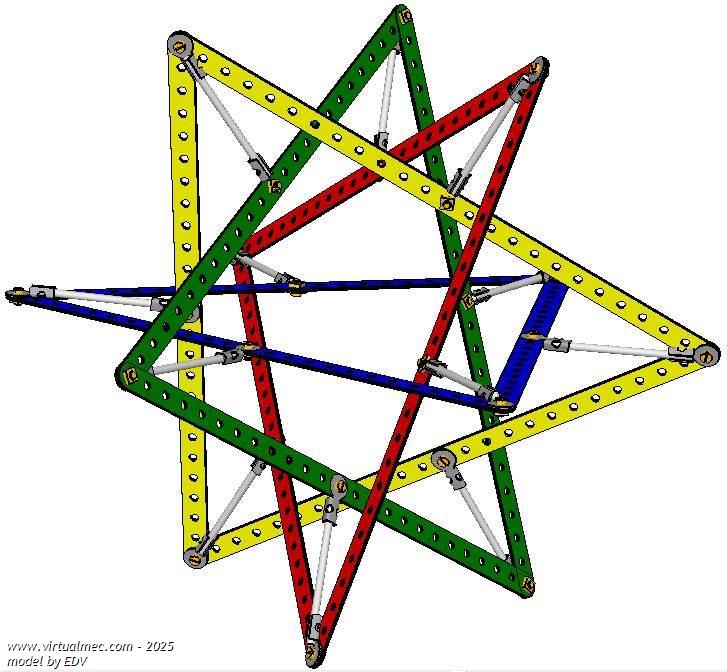

These 4 interlaced triangles model was inspired in a wooden puzzle with equivalent shape. In the wooden version the diameter of the sticks and dimensions of the edges are such that the set of 4 triangles behave as a single unit since each triangle ocupies exactly the space left free by the other 3. On the Meccano model they are held in place by strip connectors and rods. It looks like a 3 D star of David.
Download modelDownload model (.mdl)
