"Single Pulley Hoist" by patouminou - 15/04/2021
51.412 bytes - 93 parts
Description

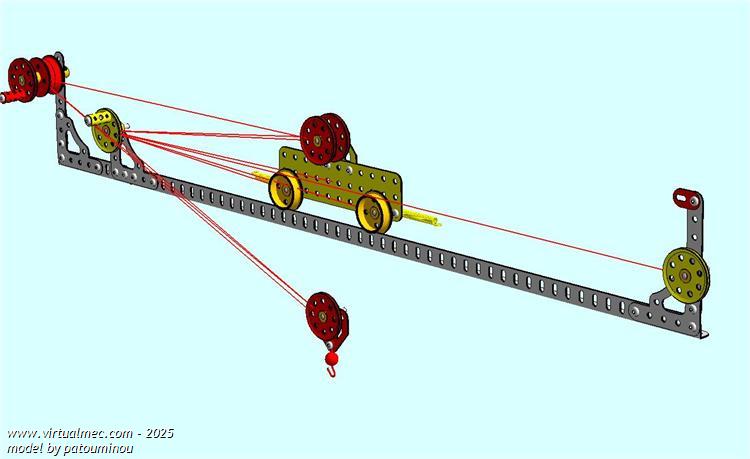

This is a test model to study the rotations of the pulleys when the lorry runs on boom or when the hoist moves up and down.
Menu : View : Toolbars and Docking Windows : Motion
then play with CHARIOT_LORRY or PALAN_HOIST
the rotations of the pulleys are different in the two cases.
The Hachette crane has five pulleys on the lorry and four pulleys on the hoist !
|
 Download model (.mdl)
|
