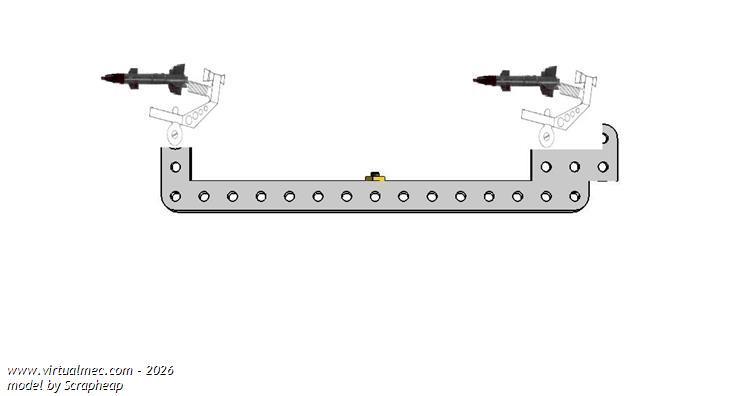

"Multi-double large missile launcher" by Scrapheap - 10/08/2011
34.938 bytes - 10 parts
Part number 492 - Launcher and associated part number 491 - Large missile is missing from the unsecured bolts (part number 37b) and associated washer (part number 38) on part number 11a - 1" double bracket and part number 160 - Channel bearing.As they are not available in VirtualMec.

Additional files
File detailsUpload date
.txt file  Parts list [ .txt - 34 bytes ] 13/04/2021 15:20:24 Download
.jpg file  Updated screenshot [ .jpg - 31.139 bytes ]
Updated screenshot showing missing part locations.
13/04/2021 15:26:19 Download
Download modelDownload model (.mdl)
