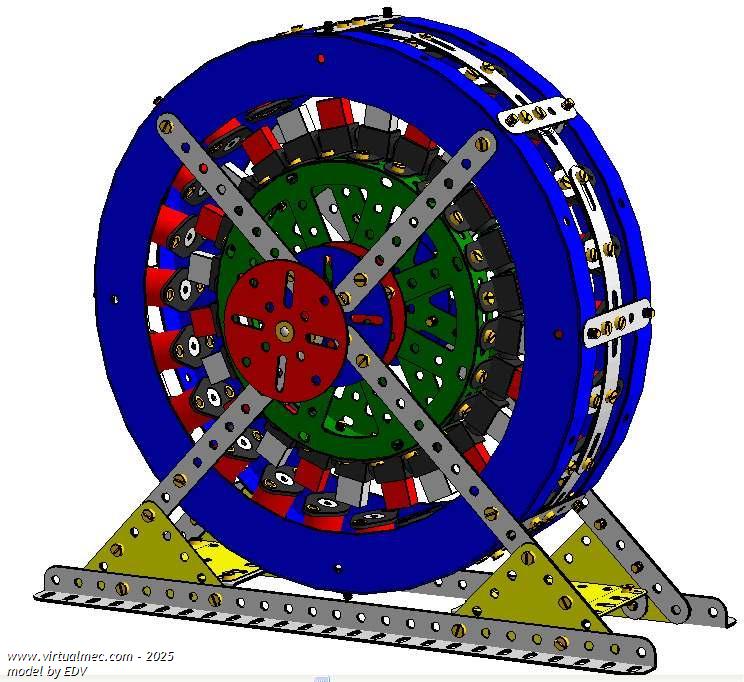

"Synchronous motor version2" by EDV - 12/02/2015
111.762 bytes - 360 parts
Description
There was a debate in Spanner of how the intermediate coils were held on the flanged rings.
In this version a central strip, built with a sequency of formed slotted strips #215 (their curvature radius adapted to coincide with the one of the flanges of the rings)were used. From the original picture it is not clear how this support was solved at the time.
I post it here to encourage debate.
Bob Thompson edited this model to introduce motion on its .mdl file attached here.
In order to see it enable Motion on the View Toolbar docking system. Click on the top middle Pause Buttons & the Synchronous Motor will fly into action
|
 Download model (.mdl)
|
