"4 Worm reduction box" by chrisf - 20/06/2012
18.613 bytes - 45 parts
Description

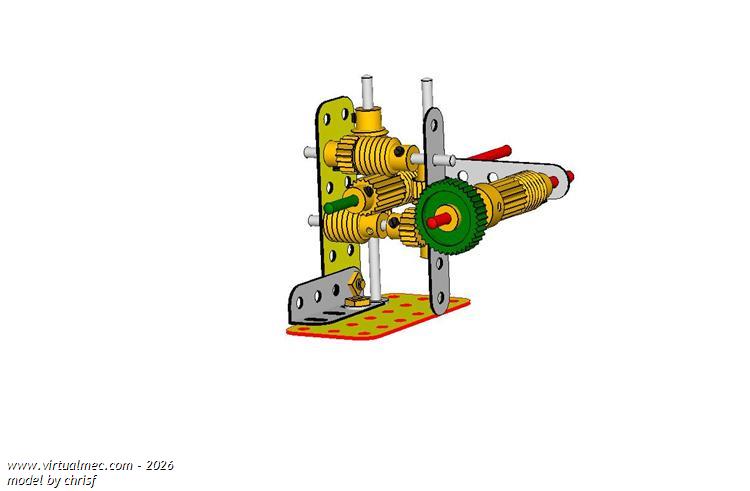

Model taken from the cover of "Standard Mechanisms"
Red rod is input, green is output, both journaled in the input worm.
There is an alternative output with a freely turning 38T gear in a socket coupling
|
 Download model (.mdl)
|
