"Self aligning platform" by EDV - 20/01/2012
64.941 bytes - 213 parts
Description

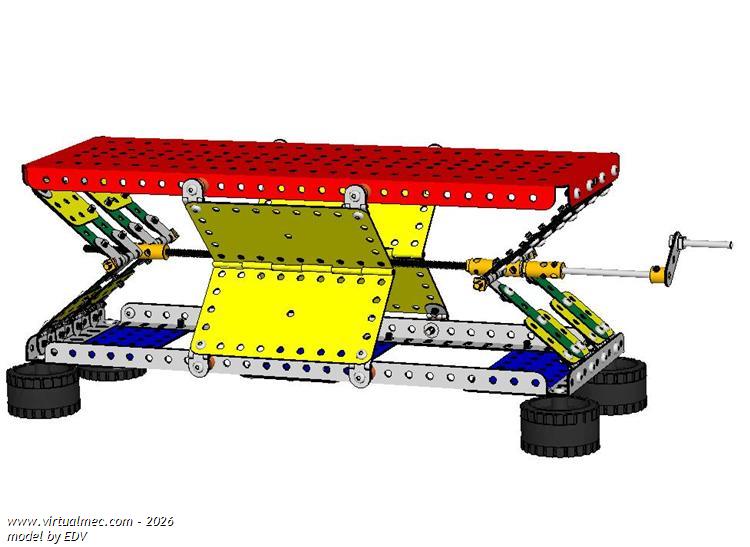

Based upon the Sarru's linkage concept the upper platform is raised paralel to its base by turning the crank of the threaded rod.
Although it has similarities with the action of a scissor's jack its linkage is different using 4 hinged planes kept at right angle 2 by 2 bolted one opposite to the other.
|
 Download model (.mdl)
|
