"TinTin Hydravion Meccano 0512 set" by EDV - 06/11/2011
51.839 bytes - 214 parts
Description

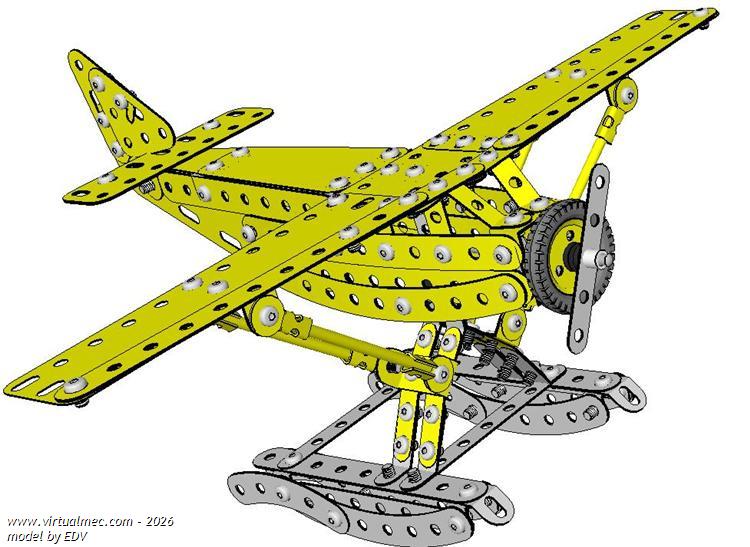

This replicates the recently issued theme model set inspired on the old Tin Tin stories.
Drawing from the instruction's manual this drawing had to replace parts # 316b (3" 3 flat rod); # 22 CP3P (1" 3 flat pulley);# 142 k (tyre for 1" pulley); # 59c ( plastic grip for triangular shfts) substituted with similar ones since they were not available at VM lybrary of part's files. I did not bend the dihedron of the wings reason for which I had to use 3" tension cords (rods) instead of the provided 2 1/2" long ones
|
 Download model (.mdl)
|
