"Meccano Coil Winding Machine" by Meccano kinematics - 25/04/2024
227.112 bytes
Description

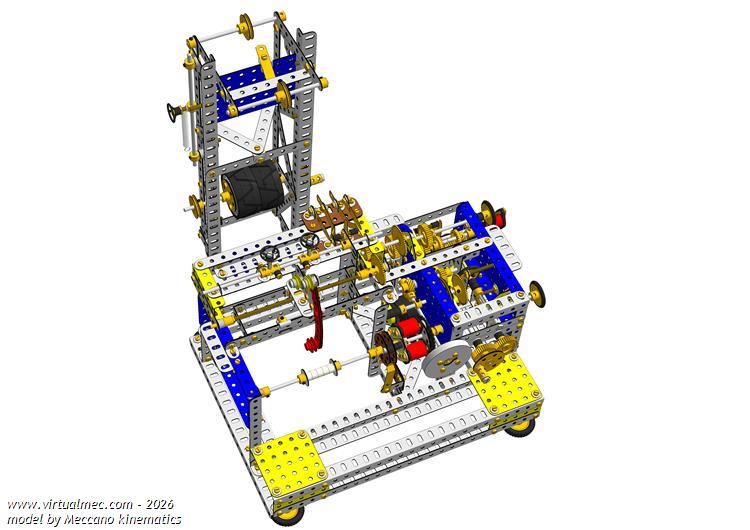

This Meccano coil winding machine has been designed and constructed by Gjalt van Slooten (1927-1992). Gjalt van Slooten lived in Drachtstercompagnie and was a well known member of the Meccano Guild Netherlands (MGN). The prototyping of the machine started in 1986 and took about 3 years to finish.
Although the copper wires are being winded in a strict parallel fassion, the machine is not capable of making orthocyclic coils.
More info about the coil winding machine can soon be found on my website http://meccanokinematics.net
|
 Download model (.mdl)
|
