"Schmidt coupling - 6 joint" by chrisf - 10/05/2015
40.678 bytes - 62 parts
Description

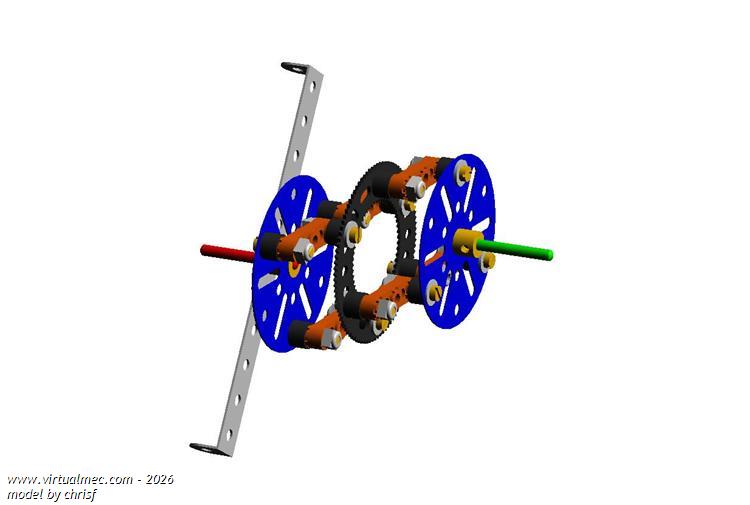

Input shaft red, output green. Output shaft free to move through 3" radius. Demo model only. Not sure of virtue of 6 joint version. Design may be registered by German engineering firm which I have not been able to identify. Commercial rights belong to them. I used the gear BECAUSE there is no 12 hole 2 1/2" plate. It is NOT a proper component of the coupling
