"simplicity mini rear axle" by PMcam235 - 06/02/2019
59.042 bytes

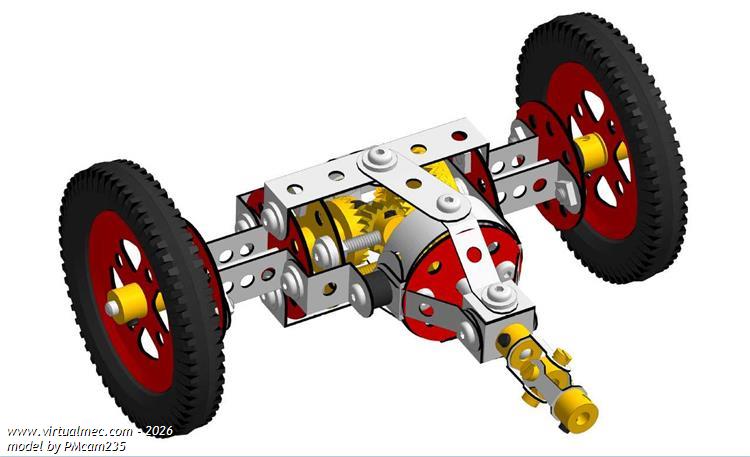

Simplicity rear axle with differential.
Sound construction as real models, but very fault tolerant, for beginers.

Single satellite, simple housing bearings (no collars needing careful alignment), high ground clearance to fit with 2'' pulleys & tyres.

Notice that the only 50 teeth contrate is represented with two contrates superimposed: this is because the VM model is not accurate enough: owing to the curved bevel of the real part, the teeth are a little bit more shifted off the securing collar than in the VM part.

Just pay great attention to every carter washer position (different from one side to the other one) to avoid internal collisions with the rotating diff assembly.
